This is the message type used to create the alias.

Parameters

The message type contains the following parameters:

Name Type Required Description
title string true Title
description string true Description of proposal
proposalType byte true Proposal Type
proposalData MsgProposalData true Proposal Data
proposer string true Proposer

MsgProposalData Information

Name Type Required Description
proposalData byte true Proposal Data

Example

{
    "type": "maintenance/msgProposal",
    "value": {
        "title": "Add authorised address",
        "description": "Add cmo as fee authorised address",
        "proposalType": "ModifyFeeMaintainer",
        "proposalData": {
            "type": "maintenance/data/feeMaintainer",
            "value": {
                "action": "add",
                "feeCollectors": [
                    {
                        "module": "",
                        "address": ""
                    }
                ],
                "authorisedAddresses": [
                    "mxw173qf9y2ae0cx8y07ez6qsl9k2gs2l5955hfc7x"
                ]
            }
        },
        "proposer": "mxw173qf9y2ae0cx8y07ez6qsl9k2gs2l5955hfc7x"
    }
}

Handler

The role of the handler is to define what action(s) needs to be taken when this MsgProposal message is received.

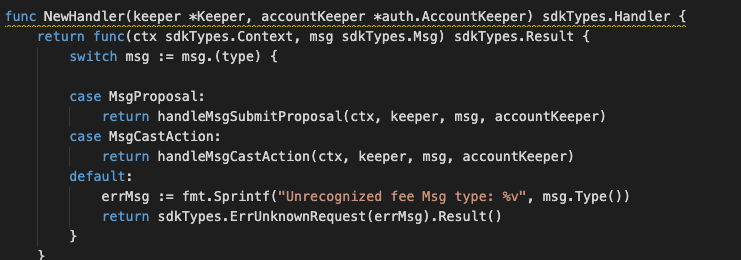

In the file (./x/maintenance/handler.go) start with the following code:

Image-1

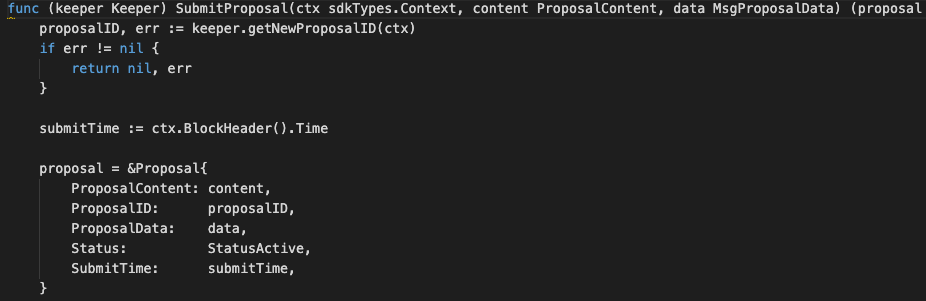

NewHandler is essentially a sub-router that directs messages coming into this module to the proper handler. Now, you need to define the actual logic for handling the MsgProposal message in handleMsgSubmitProposal:

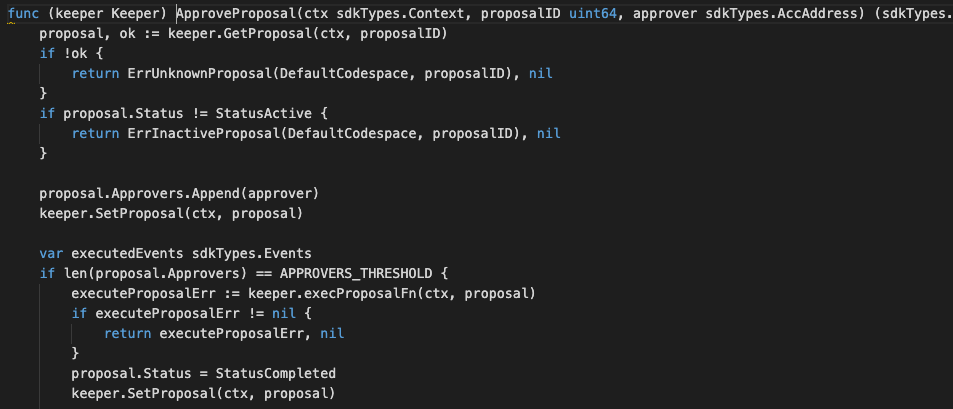

Image-1

Image-1

In this function, requirements need to be met before emitted by the network.

  • Proposer must be valid account user.
  • Proposer must be authorised as valid maintainer.
  • ProposalData must be valid.

Events

This tutorial describes how to create maxonrow events for scanner on this after emitted by a network.

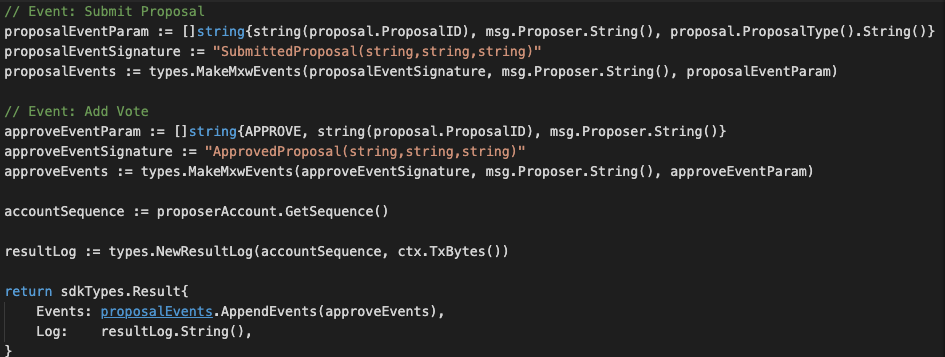

Image-1

Usage

This MakeMxwEvents create maxonrow events, by accepting :

  • Custom Event Signature : using SubmittedProposal(string,string,string)
  • Proposer
  • Event Parameters as below:
Name Type Description
proposalID uint64 Proposal ID
proposer string Proposal Account address
proposalType string Proposal Type

Usage

This MakeMxwEvents create maxonrow events, by accepting :

  • Custom Event Signature : using ApprovedProposal(string,string,string)
  • Signer
  • Event Parameters as below:
Name Type Description
proposalType string APPROVE
proposalID uint64 Proposal ID
proposer string Proposal Account address
