This is the message type used to revoke base on the existing whitelist.

Parameters

The message type contains the following parameters:

Name Type Required Description
owner string true Owner account address
payload RevokePayload true RevokePayload data
signatures []Signature true Signatures

RevokePayload Information

Name Type Required Description
kyc RevokeKycData true KYC data
pub_key crypto.PubKey true PubKey
signature []byte true signatures

Payload Information

Name Type Required Description
from string true account address
nonce string true nonce
to string true account address

Example

{
    "type": "kyc/revokeWhitelist",
    "value": {
        "owner": "mxw1y0j6xqc8dsafx2tfv4m8765mw7wrvlespzfyfq",
        "payload": {
            "kyc": {
                "from": "mxw126l5vx5s478khryv5l597lhdsfvnq9tmvmzfsl",
                "nonce": "0",
                "to": "mxw1nyk9r6347l3a6l2t0yk0mczqgumsnfuqjqwda4"
            },
            "pub_key": {
                "type": "tendermint/PubKeySecp256k1",
                "value": "AxPt3o4lK81VNI5XZZ9ik0HZ0saiEwFXDVbmU/NUhV7V"
            },
            "signature": "vA7SVyE2Nap8Ni8UbW/J/CJztU4wM4RVjAXluHt+8jhonzFZEpC2lQHYO0RAcGR/lou7k1HwZ9jGkouUULeIUw=="
        },
        "signatures": [
            {
                "pub_key": {
                    "type": "tendermint/PubKeySecp256k1",
                    "value": "Aw96JCN8YXpQqxolKEeMDgpSdYMdgVgOWEdfi96+zo+p"
                },
                "signature": "ZwGjv5XPrHVMv9RhcretrKz7PGsCMzgdKJQWQQqZc9htEVeHWfzi9k+263YCSSSYpiumymdULudzRRFicJYlqQ=="
            }
        ]
    }
}

Handler

The role of the handler is to define what action(s) needs to be taken when this MsgRevokeWhitelist message is received.

In the file (./x/token/fungible/handler.go) start with the following code:

Image-1

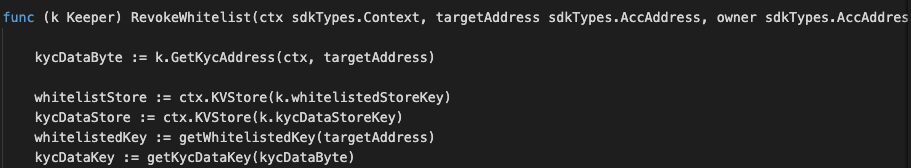

NewHandler is essentially a sub-router that directs messages coming into this module to the proper handler. Now, you need to define the actual logic for handling the MsgRevokeWhitelist message in handleMsgBurnNonFungibleItem:

Image-2

In this function, requirements need to be met before emitted by the network.

  • Authoriser, Issuer, provider must be authorised users.
  • User with valid account and KYC completed only can proceed this.

Events

This tutorial describes how to create maxonrow events for scanner on this after emitted by a network.

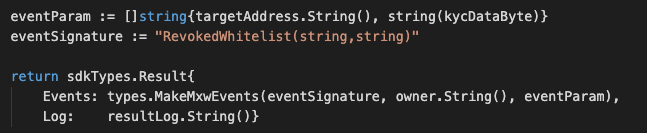

Image-1

Usage

This MakeMxwEvents create maxonrow events, by accepting :

  • Custom Event Signature : using RevokedWhitelist(string,string)
  • Owner address
  • Event Parameters as below:
Name Type Description
address string Targeted address
value string value
