This is the message type used to create or update the system fee setting. Eg. “default”, “zero”, “transfer” and etc.

Parameters

The message type contains the following parameters:

Name Type Required Description
name string true Fee setting
min sdkTypes.Coins true Minimum amount
max sdkTypes.Coins true Maximum amount
percentage string true Percentage
issuer string true Account address

Example

 {
    "type": "fee/sysFeeSetting",
    "value": {
        "name": "default",
        "min": [
            {
                "denom": "cin",
                "amount": "400000000"
            }
        ],
        "max": [
            {
                "denom": "cin",
                "amount": "2000000000"
            }
        ],
        "percentage": "0.001",
        "issuer": "mxw1k9tr2cukhfvlhj356e5eur28kuw3p6a4l93h59"
    }
}

Handler

The role of the handler is to define what action(s) needs to be taken when this MsgSysFeeSetting message is received.

In the file (./x/fee/handler.go) start with the following code:

Image-1

NewHandler is essentially a sub-router that directs messages coming into this module to the proper handler. Now, you need to define the actual logic for handling the MsgSysFeeSetting message in handleMsgSysFeeSetting:

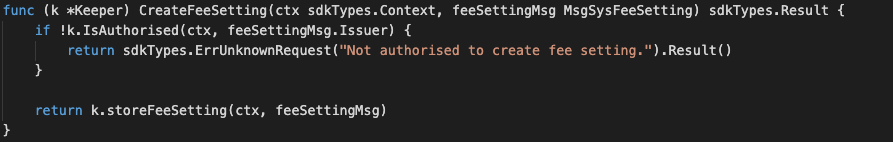

Image-2

In this function, requirements need to be met before emitted by the network.

  • Issuer must be authorised user.

Events

This tutorial describes how to create maxonrow events for scanner on this after emitted by a network.

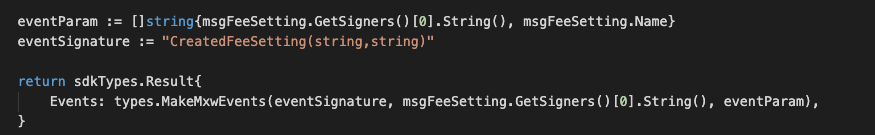

Image-1

Usage

This MakeMxwEvents create maxonrow events, by accepting :

  • Custom Event Signature : using CreatedFeeSetting(string,string)
  • Signer
  • Event Parameters as below:
Name Type Description
signer string Account address
name string Fee setting
